VIBRO HAMMER
Features

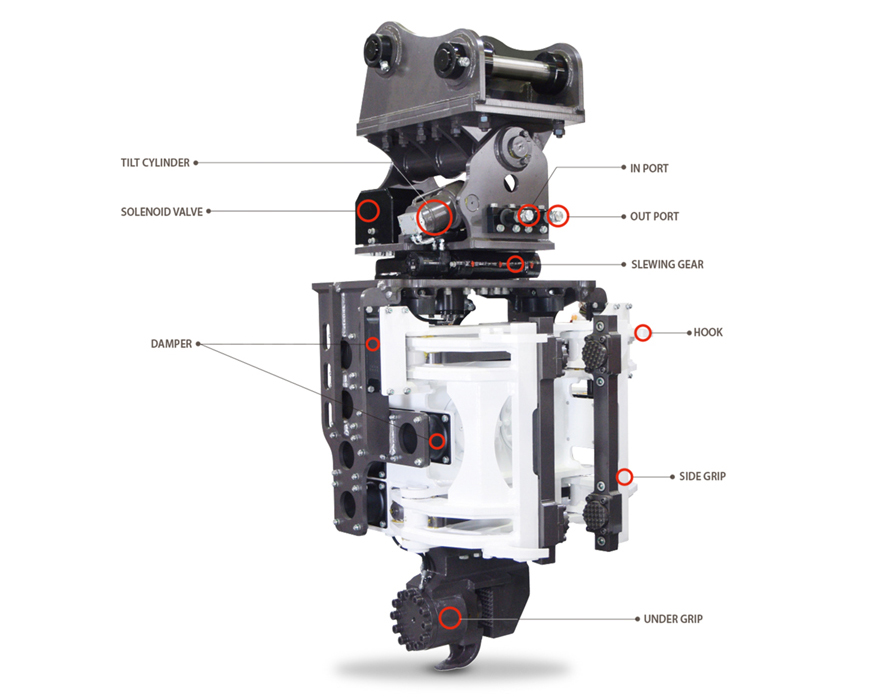

SAVE side grip pile driver is safe, speedy and economical
With no pile length limit, SAVE side grip enables the piling works at all places by adjusting the pile angle.
-
-
Available for long piling job without carrier change
-
-
-
Workable in narrow place under bridge substructures
-
-
-
Practicable for sheet pile, H-BEAM, steel pile and wood pile
-
-
-
Operating by hydraulic line of excavator (Unneeded additional equipment)
-
-
-
Easier control by rotating and tilting functions
-
TOOL EXCHANGE
-
-
Suitable for Sheet pile, H-beam and Tube pile work
-
-
-
1 : Tool for Tube
-
-
-
2 : Tool for Sheet pile
-
-
-
Convenient tool change for a variety of applications
-
SPECIFICATION & DIMENSION
SELECTION GUIDE
| Pile size | Excavator size | ||
|---|---|---|---|
| length(M) | weight(kg) | 20~32 | 33~48 |
| 6 | 2,800 | SVSH35 | |
| 12 | 1,900 | ||
| 16 | 1,300 | ||
| 8 | 2,300 | SVSH30 | |
| 12 | 1,800 | ||
| 16 | 1,200 | ||
Type and dimensions
| Sheet piles | width | 400 ~ 1200 mm |
| depth | 270 mm | |
| H-beam | size | H125 ~ H500 |
| Tube | size | 220 ~ 500 mm |
| MODEL | Unit | SVSH30 | SVSH35 | |
|---|---|---|---|---|
| Eccentric Moment | kg.m | 6 | 10 | |
| in.lbs | 476 | 680 | ||
| Centrifugal Force | kN | 640 | 1,000 | |
| Amplitude | mm | 8 | 12 | |
| Inch | 0.31 | 0.47 | ||
| Max. Frequency | rpm | 2,700 | 2,700 | |
| Oil Flow | ℓ/m | 170 ~ 210 | 180 ~ 240 | |
| Clamping Force(200bar) | ton | 40 | 44 | |
| Hydraulic Pressure | bar | 200~250 | 250~300 | |
| psi | 2,900 ~ 3,600 | 3,600 ~ 4,350 | ||
| Slewing / Tilt Angle | degree | 360 / 35 | 360 / 35 | |
| DIMENSION | Height(H) | mm | 2,120 | 2,250 |
| inch | 83 | 88 | ||
| Length(L) | mm | 1,180 | 1,230 | |
| inch | 46 | 48 | ||
| Width(W) | mm | 1,200 | 1,280 | |
| inch | 47 | 50 | ||
| Weight(excl. mount) | kg | 2,400 | 2,850 | |
| Application Excavator | ton | 20~32 | 33~48 | |
