VIBRO RIPPER

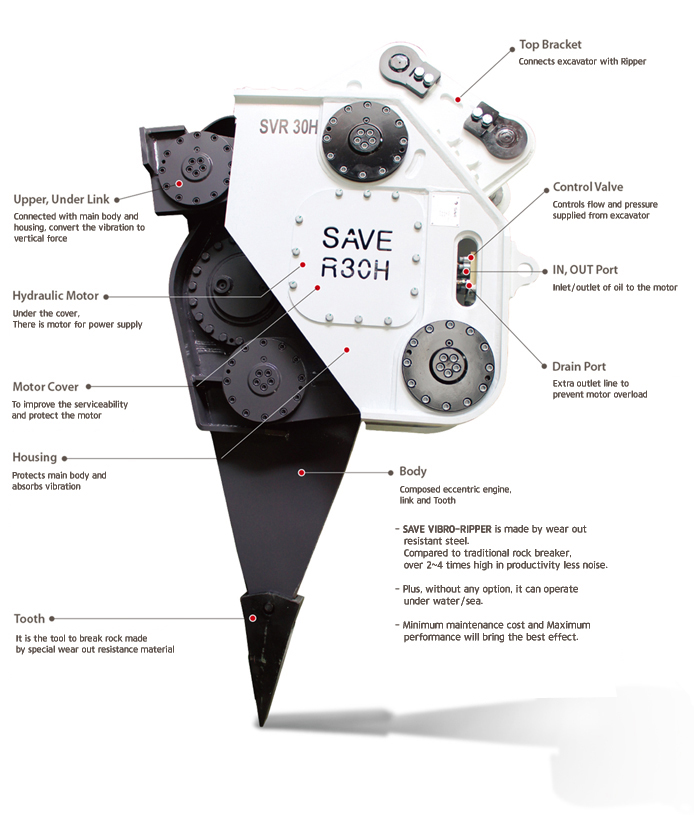

Features
SAVE VIBRO-RIPPER is one of the ECO-friendly
rock breakers by reducing noise.
-
-
Minimum noise under 90db
-
-
-
High in productivity compared to traditional rock breaker
-
-
-
High fuel efficiency
-
-
-
Under water operation
-
-
-
Easy maintenance
-
-
-
Wear out resistant Tooth
-
-
-
Opitmal design for easy maintenance
-
VIBRO-RIPPER PIPING LINE SYSTEM
Basic line configuration
High / low pressure line and Drain line,
Drain line is a mandatory to protect its motor.
-
-
INPUT LINE : Proper pressure and flow rate should be used as hydraulic supply line to supply hydraulic motor with oil to operate Vibro Ripper/p>
-
-
-
OUTPUT LINE : The line from which the hydraulic motor oil comes out, must be connected to the oil tank
-
-
-
DRAIN LINE : Line that protects the motor by discharging pressure and oil that can not escape to the OUTLINE while driving the hydraulic motor
Ⓣ oil tank : Excavator oil tank
-
VIBRO RIPPER LINE-UP
Limestone, Concrete, Asphalt, Quarry and Mining industry,
every construction site can be applied.
SPECIFICATION & DIMENSION
| Description | Unit | SVR15H | SVR20H | SVR30H | SVR40H | SVR50H | |
|---|---|---|---|---|---|---|---|
| Weight | kg | 1,600 | 2,500 | 3,150 | 4,600 | 5,600 | |
| Flow | ℓ/m | 100~120 | 170~190 | 180~200 | 200~220 | 250~260 | |
| Pressure | bar | 180~200 | 210~220 | 240~250 | 240~250 | 240~250 | |
| Frequency | rpm | 1,500 | 1,500 | 1,400 | 1,300 | 1,200 | |
| Dimension | A | mm | 1,650 | 2,420 | 2,720 | 3,150 | 3,300 |
| B | mm | 870 | 1,480 | 1,510 | 1,940 | 2,010 | |
| C | mm | 500 | 780 | 840 | 1,040 | 1,040 | |
| D | mm | 750 | 990 | 1,150 | 1,350 | 1,490 | |
| F | mm | 1,350 | 2,100 | 2,400 | 2,760 | 2,900 | |
| Application Excavator | ton | 12~16 | 18~26 | 22~30 | 28~39 | 38~55 | |
