COMPACTOR
Features

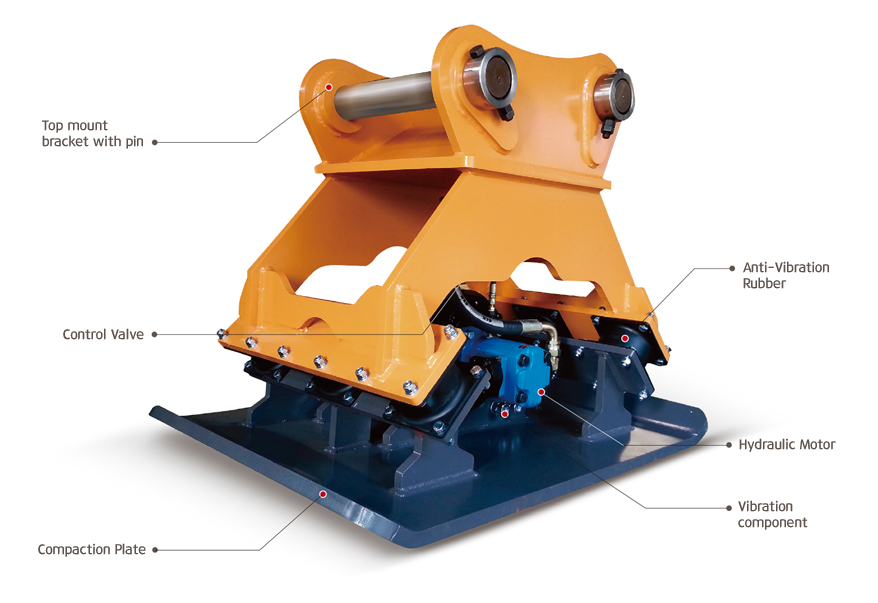

COMPACTOR VIBRATION MECHANISM
Rubber at the optimal angle inproving durability and easier maintenance
-
-
By installing protection check valve, no extra drain line required
-
-
-
Adapter type top mount can be attached to various equipment(Optional)
-
-
-
Arranged at optimal angle to increase durability and economic efficiency of anti-vibration rubber
-
-
-
Optimized hydraulic motor protection and performance by applying control valve to adjust operating pressure flow
-
-
-
A special bearing has applied to the vibrator to enhance durability
-
-
-
Equipped with high efficiency hydraulic motor for optimal compaction
-
SPECIFICATION & DIMENSION
| MODEL | Unit | SWC30 | SWC60 | SWC80 | SWC100 | |
|---|---|---|---|---|---|---|
| COMPACTION FORCE | ton | 4 | 7.5 | 15 | 15 | |
| MAX. RPM | rpm | 1,800 | 1,800 | 2,000 | 2,000 | |
| OIL FLOW | l/min | 45~80 | 100~120 | 170~200 | 170~200 | |
| OIL PRESSURE | bar | 150~190 | 200~240 | 220~240 | 240~250 | |
| kg | 350 | 644 | 1,060 | 1,150 | ||
| PLATE DIMENSION (L × W) | mm | 900 × 550 | 1,160 × 700 | 1,350 × 900 | 1,350 × 900 | |
| HEIGHT (H) | Adapter Type | mm | 540 | 676 | 730 | 730 |
| Direct Type | mm | 751 | 922 | 1,043 | 1,092 | |
| APPLICATION EXCAVATOR | ton | 4~7 | 13~16 | 18~25 | 28~30 | |
