VIBRO HAMMER

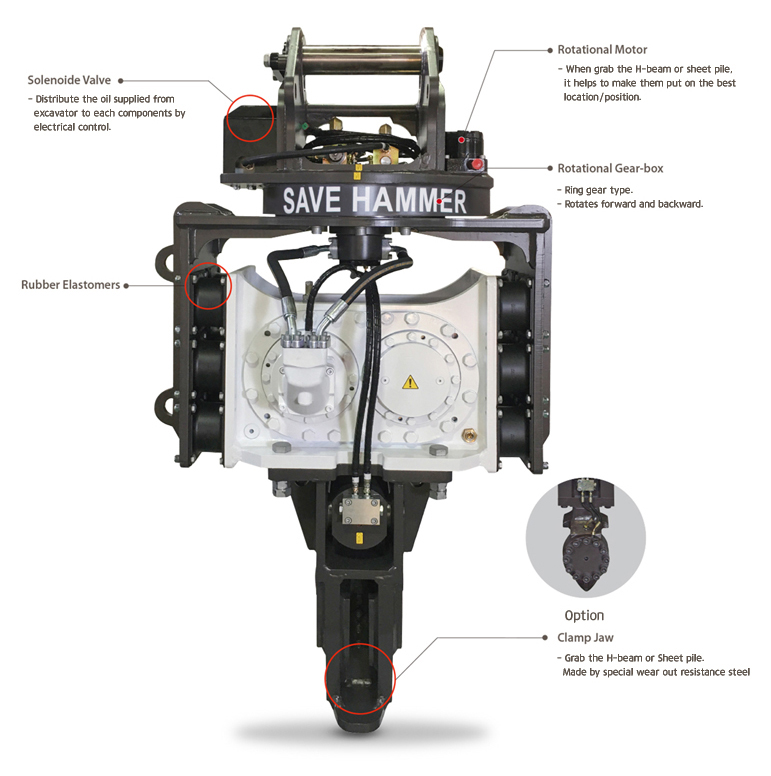

Features
Vibratory Hammer (Pile Driver) is an useful machine of excavator.
It handles H-beam and Sheet pile at river stream, road wall and building construction job.
-
-
Low in maintenance cost compared to crane
-
-
-
Superior mobility at narrow space
-
-
-
No extra power source repuired other than excavator oil
-
-
-
Rotates 360degree
-
-
-
Proven high quality rubber absorb vibration
-
-
-
Special bearing can endure at high speed rotation
-
SPECIFICATION & DIMENSION
| MODEL | Unit | SVH30 | SVH35 | SVH45 | |
|---|---|---|---|---|---|
| Eccentric Moment | kg.m | 6 | 10 | 16 | |
| Centrifugal Force | kN | 640 | 1,000 | 1,500 | |
| Max Amplitude | mm | 10 | 18 | 25 | |
| Inch | 0.31 | 0.47 | 0.98 | ||
| Max. Frequency | rpm | 2,700 | 2,700 | 2,700 | |
| Oil Flow | ℓ/m | 170 ~ 210 | 180 ~ 240 | 200 ~ 250 | |
| Hydraulic Pressure | bar | 200 ~ 250 | 250 ~ 300 | 270 ~ 320 | |
| psi | 2,900 ~ 3,600 | 3,600 ~ 4,350 | 3,910 ~ 4,640 | ||
| Slewing | degree | 360 | 360 | 360 | |
| DIMENSION | Height(H) | mm | 1,964 | 2,035 | 2,111 |
| inch | 77 | 80 | 83 | ||
| Length(L) | mm | 729 | 729 | 805 | |
| inch | 29 | 29 | 31 | ||
| Width(W) | mm | 1,077 | 1,135 | 1,214 | |
| inch | 42 | 44 | 47 | ||
| Weight | kg | 1,690 | 1,800 | 1,950 | |
| lbs | 3,725 | 3,968 | 4,299 | ||
| Application Excavator | ton | 20 ~ 32 | 33 ~ 39 | 42 ~ 55 | |
