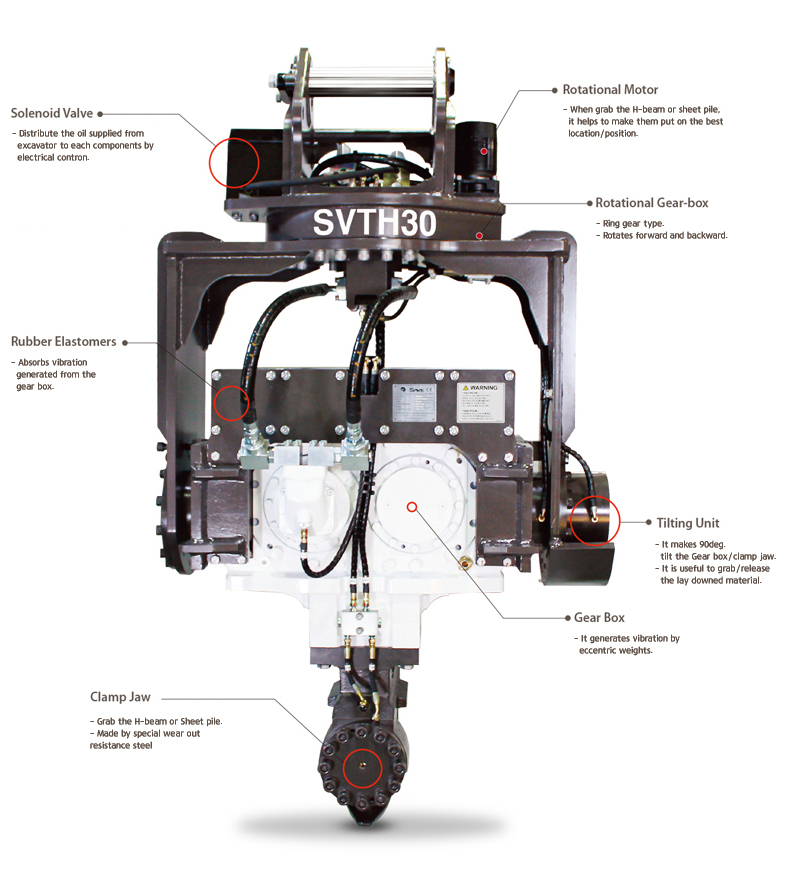

Vibratory Hammer (Pile Driver) is an useful machine of excavator.
It handles H-beam and Sheet pile at river stream, road wall and building construction job.
90 tilting refracting function to pick (sheet) pile and work immediately.
※ Improved operation efficiency compared to ordinary type.
It has auto tilting function for easy grab an object laying down.
Easy installation using existed pipe line of hydraulic breaker.
360 degree auto rotation function makes it easy to change direction when working with piles
Using tested high quality anti-vibration rubber, durability exceeds in strong vibration
Excellent performance without power pack.
Powerful and slipless clamping jaw.
MODEL | UNIT | SVTH30 | SVTH35 | |
---|---|---|---|---|
Eccentric Moment | kg.m | 6 | 10 | |
in.lbs | 476 | 680 | ||
Centrifugal, Force | kN | 640 | 1,000 | |
Amplitude | mm | 8 | 15 | |
inch | 0.31 | 0.59 | ||
Max Frequence | rpm | 2,700 | 2,700 | |
Oil, Flow | ℓ/m | 170~210 | 180~220 | |
Clamping Force(200bar) | ton | 40 | 44 | |
Hydraulic Pressure | bar | 200~250 | 250~300 | |
psi | 2,900~3,600 | 3,600~4,350 | ||
Slewing / Tilt Angle | degree | 360 / 90 | 360 / 90 | |
Dimension | Height(H) | mm | 2,200 | 2,230 |
Height(H1) | mm | 680 | 680 | |
Length(L) | inch | 720 | 770 | |
Length(LT) | mm | 1,290 | 1,330 | |
Width(W) | mm | 1,280 | 1,330 | |
Width(W2) | mm | 245 | 245 | |
Clamp jaw(D) | mm | 31 | 31 | |
Height(HT) | mm | 1,650 | 1,660 | |
Weight | kg | 2,090 | 2,200 | |
Application Excavator | ton | 20~32 | 33~39 |
